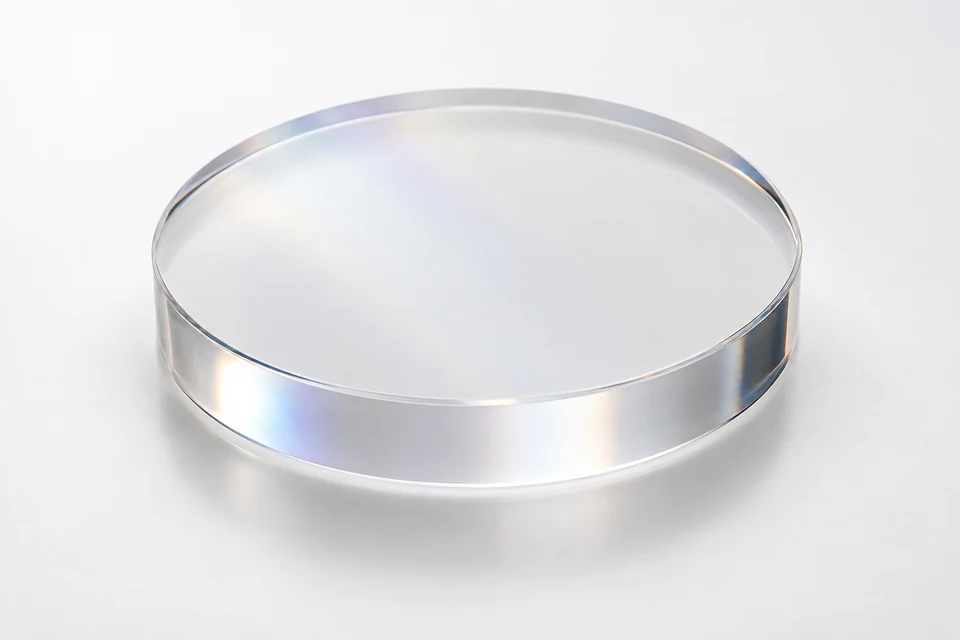

Sapphire Optical Flats
An ultra-high-flatness sapphire window used as a reference standard in interferometry and metrology, combining sapphire's hardness with precision surface accuracy.
Share requirements, quantities and a drawing if available. Specifications and supply terms require confirmation.
Overview
An optical flat is a reference-grade window manufactured to an extremely tight surface-flatness tolerance, used in interferometry and metrology to test or calibrate other optical surfaces. A sapphire optical flat combines that precision-flatness requirement with sapphire's hardness and durability, making it more resistant to scratching and wear than a standard glass reference flat in industrial or repeated-use calibration settings. Procurement review should center on using sapphire as an optical reference surface where flatness and metrology matter more than protection.
Key Selection Points
- Combines sapphire's scratch resistance with the precision-flatness requirement of a reference optical flat
- Used in interferometry and metrology calibration applications in this product category
- More durable than a standard glass optical flat in repeated-use industrial calibration settings
Applications
Sapphire optical flats are used as reference standards in interferometric testing and metrology calibration, particularly in industrial or repeated-use settings where a more durable alternative to a standard glass optical flat is needed.
Structure & Configuration
This module describes the physical configuration and interfaces that distinguish the product from a generic optic. For Sapphire Optical Flats, the module focuses on using sapphire as an optical reference surface where flatness and metrology matter more than protection.
- Use a labeled cross-section or configuration drawing with clear datums.
- Separate optical clear zones from mounting, sealing and handling surfaces.
- Include dimensional and inspection requirements with the enquiry for feasibility review.
- Product-specific review: connect working aperture with sapphire orientation or grade and document the trade-off against a standard sapphire protective window.
Prepare a product-specific enquiry
Include the requirements you know and identify any points that need confirmation.
| RFQ input | What to provide |
|---|---|
| Input 1 | System context: explain why Sapphire Optical Flats is being considered for using sapphire as an optical reference surface where flatness and metrology matter more than protection. |
| Input 2 | Required optical definition: working aperture, then flatness or wavefront need. |
| Input 3 | Required physical definition: sapphire orientation or grade, then inspection wavelength and reference-face use. |
| Input 4 | Product distinction to record: state whether the part is used in contact, reflection or transmission and define the metrology method. |
| Input 5 | Provide the required quantity and program phase. |
| Input 6 | List the applicable drawing, test reference and acceptance basis. |
Frequently Asked Questions
Which specification should be fixed first for Sapphire Optical Flats?
Begin with working aperture. It determines how flatness or wavefront need and sapphire orientation or grade should be evaluated before the mechanical details are finalized.
When is Sapphire Optical Flats a better fit than a standard sapphire protective window?
Choose between them by testing the requirement for using sapphire as an optical reference surface where flatness and metrology matter more than protection. If that requirement is absent, the comparison product may provide a simpler procurement path.
What should an RFQ for Sapphire Optical Flats include?
State whether the part is used in contact, reflection or transmission and define the metrology method. Also include quantity, drawing revision and the required acceptance evidence. Final availability is confirmed during quotation.
Which details for Sapphire Optical Flats still require supplier verification?
Actual material and coating availability, dimensional limits, tolerances, inspection reports, MOQ and lead time cannot be inferred from this page and must be confirmed against the RFQ.
How should a buyer review the technical module for Sapphire Optical Flats?
Use it to check working aperture against sapphire orientation or grade. Any diagram is explanatory only, and any numerical performance still requires configuration-specific evidence.
