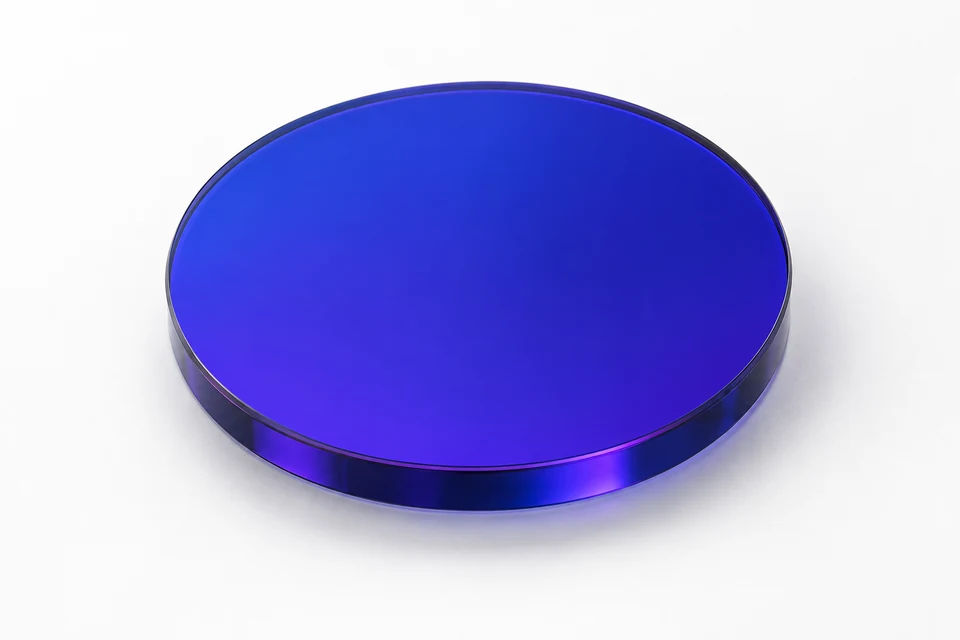

Laser Line Filters
A very narrowband filter designed to isolate a single laser wavelength while rejecting nearby light.
Share requirements, quantities and a drawing if available. Specifications and supply terms require confirmation.
Overview
A laser line filter is a bandpass filter with an especially narrow bandwidth, engineered around a single laser wavelength rather than a general spectral band — a common use is 'cleaning up' the output of a laser source or rejecting laser light in a detection path (as in Raman spectroscopy). The narrower the bandwidth, the more demanding the thin-film coating, which is why this category carries the same capability-verification requirement as the other coating-defined filters in this catalog. Procurement review should center on isolating a narrow laser line while controlling nearby blocking and angular shift.
Key Selection Points
- Very narrow bandwidth centered on a single laser wavelength, distinct from general-purpose bandpass filters
- Standard component for laser clean-up and Raman spectroscopy signal isolation
Applications
Laser line filters are used to clean up a laser source's output before it reaches an experiment, and to reject the laser wavelength from a detection path in techniques like Raman spectroscopy where the signal of interest is very close to the excitation line.
Spectral Performance
This module explains which spectral variables must be defined before measured performance can be reviewed. For Laser Line Filters, the module focuses on isolating a narrow laser line while controlling nearby blocking and angular shift.
- Review measured performance against supplier or test-lab data tied to the exact configuration.
- Record wavelength region, angle of incidence and polarization with the measurement context.
- Confirm transmission, reflectance and blocking requirements against approved evidence for the selected configuration.
- Product-specific review: connect laser wavelength with AOI and polarization and document the trade-off against a broader bandpass filter.
Prepare a product-specific enquiry
Include the requirements you know and identify any points that need confirmation.
| RFQ input | What to provide |
|---|---|
| Input 1 | Procurement objective for Laser Line Filters: isolating a narrow laser line while controlling nearby blocking and angular shift. |
| Input 2 | Lock laser wavelength before requesting a decision on passband width. |
| Input 3 | Describe AOI and polarization and the mating or operating condition for blocking around adjacent sources. |
| Input 4 | Do not omit this product-specific point: state laser line, linewidth, AOI, polarization and detector sensitivity range. |
| Input 5 | Include quantity and project phase; MOQ, stock and lead time are confirmed during quotation. |
| Input 6 | Identify drawing revision, critical notes and evidence needed at acceptance. |
Frequently Asked Questions
What is the difference between a laser line filter and a notch filter?
A laser line filter transmits a narrow band around one laser wavelength and blocks everything else; a notch filter does the opposite — it blocks a narrow band at the laser wavelength and transmits everything else. They are used for opposite purposes.
Can you supply a custom center wavelength for Laser Line Filters?
Share your target laser wavelength through the RFQ form and we will confirm feasibility once a coating source is confirmed.
Which specification should be fixed first for Laser Line Filters?
Begin with laser wavelength. It determines how passband width and AOI and polarization should be evaluated before the mechanical details are finalized.
When is Laser Line Filters a better fit than a broader bandpass filter?
Choose between them by testing the requirement for isolating a narrow laser line while controlling nearby blocking and angular shift. If that requirement is absent, the comparison product may provide a simpler procurement path.
What should an RFQ for Laser Line Filters include?
State laser line, linewidth, AOI, polarization and detector sensitivity range. Also include quantity, drawing revision and the required acceptance evidence. Final availability is confirmed during quotation.
